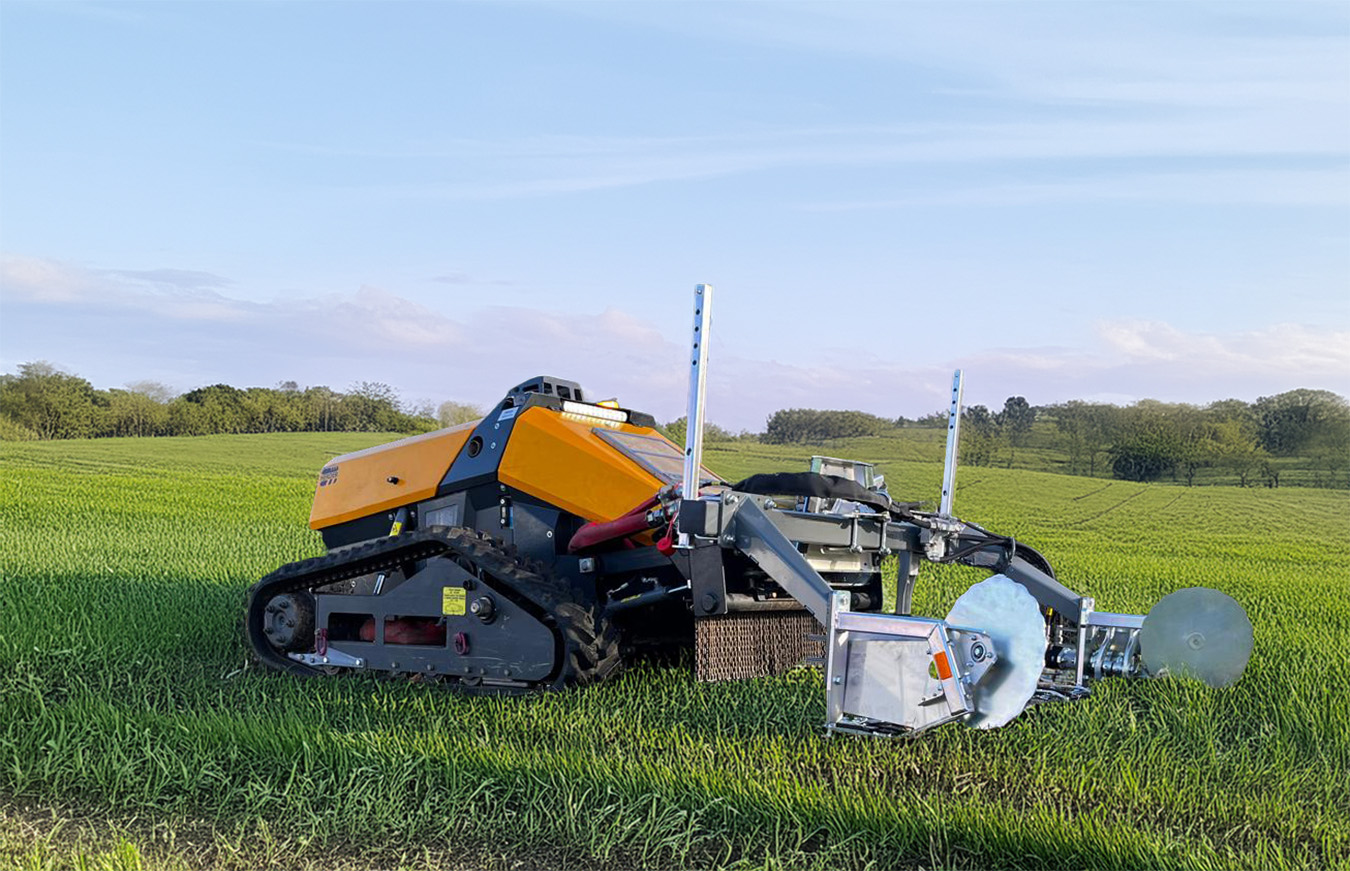

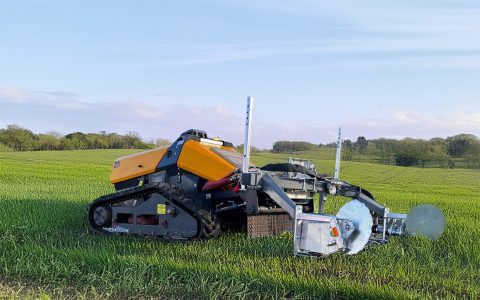

CR10 WITH CUTTERBAR
The CR10 cutter bar enables efficient and ecological mowing, combining a low centre of gravity with excellent visibility for precise remote operation. Its scissor-like cutting action ensures a clean cut, minimal crop damage and smooth material flow, making it ideal for sustainable verge and ditch maintenance.
Efficient and ecological mowing
The cutter bar for the CR10 is designed for precise and sustainable remote maintenance. Thanks to its low centre of gravity and compact mounting, you benefit from stable and efficient operation with excellent visibility of the working area.
The cutter bar uses a scissor-like cutting action, cleanly slicing the vegetation instead of flailing it. This results in a cleaner cut, reduced crop damage and faster regrowth. At the same time, the impact on flora and fauna is minimised, making it ideal for ecological verge and ditch maintenance.
With a large throughput of approx. 77 cm and crop separation discs, you are ensured of a smooth material flow and a clean, uniform cut. Suitable for working widths from 1.35 to 2.35 metres and cutting heights from 5 to 15 cm.
Multifunctional tool carrier
Compact design
Max. climbing angle up to 55 °
Remote controlled
CR10 VIDEOS
0:16
CR10 SPECIFICATIONS
| 3-CYLINDER | 4-CYLINDER | |
| Dimensions LxBxH without implement: | 2,16 x 1,38 x 1,18 m | |
| Width tracks extended: | 1,68 m | |
| Ground clearance: | 0,20 m | |
| Mass without implement: | 1.300 kg | 1.3500 kg |
| Ground pressure without implement: | 192 gr/cm² | |
| Max. mass of separate implement: | 550 kg | |
| Diesel engine power: | Hatz 40 kW/55 PK | Hatz 55 kW/75 PK |
| Emission class: | Stage 5 | |
| Turning radius: | 0 m/Zero-turn function | |
| Max. driving speed: | Max. 14.5 km/u | |
| Climable slope: | 55° | |
| Cooling type: | Water-cooled | |
| Fuel tank volume | 40 l | |
| Hydraulic tank volume: | 22 l | |
| Battery type: | 12 V (85 Ah) | |
| Control type: | Radio control | |
| Implement drive: | Hydrostatic closed circuit | |
| Quick release type: | DPC Mounting plate | |
